IGX3910 Edge Computing Control Unit
IGX3910 embedded control unit is developed and designed based on Rexchip Microelectronics RK3568J processor, which is mainly targeted at industrial control units. The product adopts a fanless passive cooling design and has undergone stringent environmental, EMC, safety, and long-term stability operation tests to ensure its stable and reliable operation.
- 4×Cortex-A55@1.8GHz
- Suitable for industrial and commercial energy storage, intelligent transportation, industrial automation
- Rich configuration, RAM 2/4/8 GB ROM 16/32/64 GB
- Rich interface, support 11 RS485/4 network port/2 CAN
- Rich software, supports Docker, MySQL, FTP Server, ModBus-TCP, ModBus-RTU, OpenVPN, MQTT, OpenSSL, OpenSSH.
- Supports power-down hold to enhance data security
- Certifications: FCC, CE, RoHS, EMC certified
- Comprehensive testing: electromagnetic compatibility, vibration shock, high and low temperature, hot and humid, hot and cold start, components salt spray.
Processors | Rockchip RK3568J NPU: 1TOPS, support INT8/INT16/FP16/BFP16 mixed operation GPU: Mali-G52-2EE; OpenGL ES 1.1, 2.0, 3.2, Vulkan 1.0,1.1, OpenCL 2.0 VPU: Hard decoding: -H.264, H.265, VP9: up to 4096×2304@60fps -VC1, MPEG-4, MPEG-2, MPEG-1: up to 1920×1088@60fps -H.263: up to 720×576@60fps Hardcoded: -H.264/AVC, H.265/HEVC: up to 1920×1080@60fps |
RAM | 2GB/4GB DDR4 8GB LPDDR4x |
ROM | 16GB/32GB/64GB eMMC |
Ambient Temperature | -40℃~+80℃ |
Working Voltage | Rated DC 24V, support wide voltage 9V-36V, with reverse connection protection, over-current protection. |

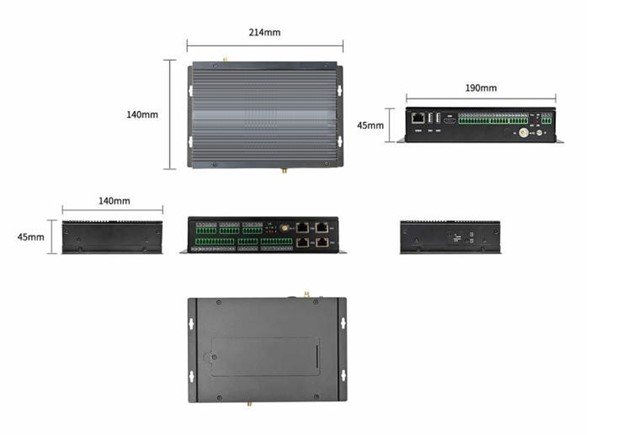

Dimensions | The same size as the basic version of the extended version: 190x140x45mm (with lugs 214x140x45mm) |
Heat dissipation method | Passive cooling, no fan |
Weight | 1.3kg (Expanded Barebone, without 4G, mSATA modules and antenna) |
Functions | Basic Edition | Extended Edition | Description |
RS485 | 4 | 11 | 4 RS485 as standard in the basic version, 11 RS485 in the extended version |
RS232 | 0 | 2 | Extended version supports 2 RS232 interfaces, multiplexed with 2 RS485s |
Ethernet | 2 | 4 | Basic version comes standard with 2 Gigabit Ethernet ports, Extended version comes standard with 2 Gigabit Ethernet ports + 2 100 Gigabit Ethernet ports. |
CAN | 2 | 2 | Support CAN2.0 B |
DI | 8 | 8 | Dry contact input |
DO | 6 | 6 | Relay output, contact capacity: 5A 250VAC, 5A 30VDC |
mSATA | 1 | 1 | Support SATA3.0 protocol mSATA hard disk expansion storage |
TF card | 1 | 1 | Supports TF card to expand storage and burn operating system. |
4G | 1 | 1 | Compatible with EC200N, EC20, EG25, MiniPCIE Interface, One SIM Card Slot |
WIFI | 1 | 1 | Supports STA, AP mode |
HDMI | 1 | 1 | Support HDMI 1.4, support 1080P@60fps (up to 4K) |
USB | 2 | 2 | Support USB2.0 HOST, can be used for touch screen, USB flash disk, mouse, keyboard, etc. |
RTC | 1 | 1 | Timekeeping accuracy 1 minute/month |
Buzzer | 1 | 1 | Supported |
Power down protection | 1 | 1 | Detects power down information and keeps network/4G or WiFi online for 5 seconds after power down. |
Debug | 1 | 1 | RJ45, RS232 Levels, Cisco Wiring Sequence |
operating system | Linux4.19 | Ubuntu20.04 |
Support Software | Docker | |
MySQL | MySQL | |
FTP Server | FTP Server | |
ModBus-TCP | ModBus-TCP | |
ModBus-RTU | ModBus-RTU | |
OpenVPN | OpenVPN | |
MQTT | MQTT | |
OpenSSL | OpenSSL | |
OpenSSH | OpenSSH |
Serial number | Test Item | Supply Voltage(V) | Power(W) |
1 | Peak power without load startup | 6.48 | 8.4 |
2 | No Load Standby Power | 4.56 | 6 |
3 | CPU pressure + memory + eMMC read/write stress test + full interface operation | 5.52 | 7.92 |
4 | CPU Pressure + Memory + eMMC Read/Write Stress Test + Full Interface Operation + mSATA HDD Read/Write | 6.96 | 9.84 |
5 | CPU pressure + memory + eMMC read/write stress test + full interface operation + 4G operation + mSATA hard disk read/write + HDMI display | 11.52 | 14.4 |
Note: The above data is the result of the normal working environment of the Extended Edition, and the change of 4G signal strength, mSATA hard disk manufacturers and specifications, and USB interface devices will have a certain impact on the power consumption of the whole machine.
In many industries such as industrial and commercial energy storage, grid-side energy storage, source-network side energy storage, industrial automation, traditional electric power, smart city, etc., IGX3910, with the comprehensive advantages of cost-effective, multi-functional, industrial-grade, and comprehensive certifications, plus our complete after-sales technical support, will help your products to go to market quickly and walk in the forefront of the industry.
