IGXXGMC-10GTP Unmanaged Industrial Switch
- Maximum support for 10 Gigabit ports, of which 8 ports support POE
- Green and low power consumption
- Industrial grade wide temperature operating range
- Supports DIN-rail/wall mounting
- Fanless design, full metal aluminum housing, IP40 protection level, EMC level 4
- Maximum support for 10 Gigabit ports, of which 8 ports support POE
- Green and low power consumption
- Industrial grade wide temperature operating range
- Supports DIN-rail/wall mounting
- Fanless design, full metal aluminum housing, IP40 protection level, EMC level 4
Product Model | IGXXGMC-10GTP |
Number of ports | 10, including 8 PoE ports, 2 non-PoE ports |
Port Rate | 10/100/1000Mbps |
Port Transmission Distance | 100 meters (maximum recommended distance 85 meters when using POE) |
Number of PoE ports | 8 pcs |
PoE Standard | IEEE802.3at, maximum power of 25 watts per port |
Switching Capacity | 20Gbps, wire-speed non-blocking |
Packet Forwarding Rate | 14.88Mpps |
MAC Address Table | 16K |
Packet Forwarding Delay | <5us |
Power Connection Method | Phoenix Terminal |
Power Supply | 47-52V DC |
Whole Power Consumption | <=12W (without PoE) |
Shell Material | Aluminum Alloy |

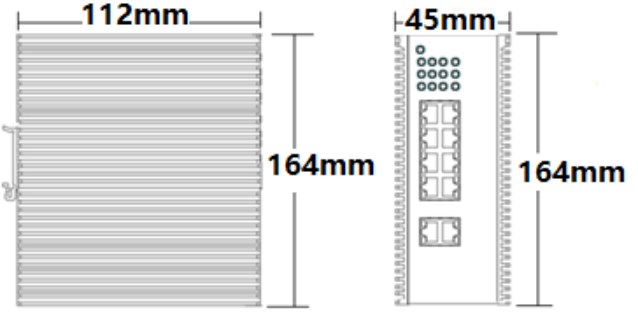

Enclosure Size | 164*112*45mm (bare), 175*121*45mm (with power terminals and rail mounting accessories) |
Indicator Lights | Power indicator, port status indicator |
Operating Temperature | -30 ~ 75 degrees |
Storage Temperature | -40 ~ 85 degrees |
Humidity | 10% ~ 90% RH (non-condensing) |
MTBF | 700,000Hours |
dependability | IEC 60068-2-27 IEC 60068-2-6 IEC 60068-2-32 IEC 61000-4-2 (ESD)：Level 4； IEC 61000-4-3 (RS)：Level 4； IEC 61000-4-4 (EFT)：Level 4； IEC 61000-4-5（Surge）：Level 4； IEC 61000-4-6 (CS)：Level 3； IEC 61000-4-8(PFMF)：Level 5； IEC 61000-4-12：Level 4； |
model number | descriptive | note |
IGXXGMC-10GTP | Industrial Switch – Unmanaged – Card Rail – 8-port Gigabit PoE power – 2-port Gigabit non-POE power – 48V DC power supply |
