IGXXGMC-8T 100GbE Industrial Switch
- Supports up to 8 hundred megabit electrical ports
- Green and low power consumption
- Industrial grade wide temperature operating range
- Support rail/wall mounting
- Fanless design, full metal housing, protection rating
- IP40, EMC Class 4
- Supports up to 8 hundred megabit electrical ports
- Green and low power consumption
- Industrial grade wide temperature operating range
- Support rail/wall mounting
- Fanless design, full metal casing, IP40 protection, EMC class 4
Product Model | IGXXGMC-8T |
Number of ports | 8 |
Port Speed | 10/100Mbps |
Transmission Distance | 100米 |
Forwarding Capacity | 1.6Gbps wire speed non-blocking |
Packet Forwarding Rate | 2.38Mpps |
MAC Address Table | 1K |
Packet Forwarding Delay | <5us |
Power Connection Method | Phoenix Terminal |
Power Supply | 12-52V DC |
Overall Power Consumption | <=3W |
Shell Material | Aluminum Alloy |

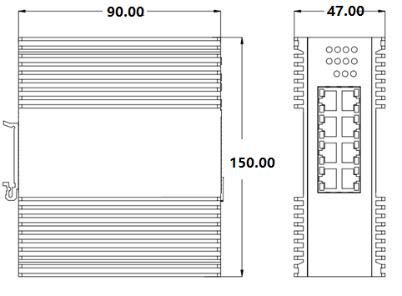

Chassis Size (L*W*H) | 150*90*47mm |
Indicator Lights | Power indicator, port status indicator |
Operating Temperature | -30 ~ 75 degrees |
Storage Temperature | -40 ~ 85 degrees |
Humidity | 10% ~ 90% RH (non-condensing) |
MTBF | 700,000Hours |
Reliability | IEC 60068-2-27 IEC 60068-2-6 IEC 60068-2-32 IEC 61000-4-2 (ESD)：Level 4； IEC 61000-4-3 (RS)：Level 4； IEC 61000-4-4 (EFT)：Level 4； IEC 61000-4-5（Surge）：Level 4； IEC 61000-4-6 (CS)：Level 3； IEC 61000-4-8(PFMF)：Level 5； IEC 61000-4-12：Level 4； |
model number | descriptive | note |
IGXXGMC-8T | Industrial Switch – Unmanaged – Card Rail – 8-Port 100GbE – DC Powered |
